What is a CNC Post-Processor? And how does it work?

CAM software defines how a part should be machined.

The CNC post-processor translates that NC programming intent into the exact code, format and machine instructions required by the machine tool on the shop floor.

This makes post-processing one of the most important steps in the CNC programming workflow. Without the right post-processor, even a well-programmed CAM toolpath may require manual editing, create inefficient machine motion, or introduce risk during setup and prove-out.

NC post-processing explained.

Setup time includes all the work required to prepare a machine for a new job. This often includes creating NC post-processing is responsible for joining two very different technologies, and it often compensates for weaknesses on either end.

Therein lies the crux of the issue: a post-processor can enhance technology or inhibit it, depending on its application.

To understand how a post-processor can enhance technology, it helps to understand how and why post-processing evolved, how it has been traditionally applied, and how the emergence of advanced post-processing systems has changed its use today.

This article will show how post-processors can be used as key components in factory automation.

What is a Post-Processor?

Most CAM systems generate one or more types of neutral language files containing instructions for a CNC machine. These are either in a binary format called CLDATA or in an ASCII-readable format tailored to the APT language.

APT is an acronym for “Automatically Programmed Tools,” software that accepts symbolic geometry and manufacturing instructions, and generates CLDATA describing the manufacturing operation in absolute terms.

Some CAM systems offer a high degree of flexibility, allowing almost anything to be included in the neutral file; others are quite strict about what can and cannot be included.

At the other end of the equation sits the NC machine. It requires input customized for the controller being used and, arguably, to a lesser extent, the operator running the machine.

Most importantly, the NC machine must be operated in a manner that satisfies shop-floor criteria, primarily based on safety, efficiency, and tradition.

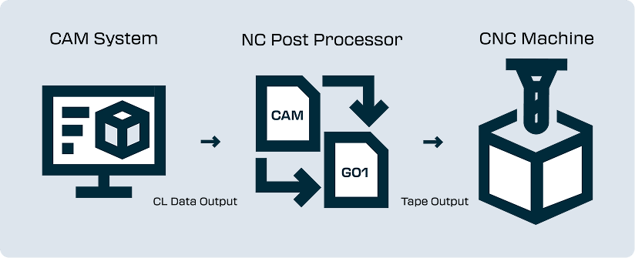

Between these two lies the post-processor. The post-processor is the software that translates neutral instructions from the CAM system into the specific instructions required by the NC machine (Figure 1).

This software responds to the unique requirements and limitations of the CAM system, NC machine, and manufacturing environment. Therefore, post-processing is an important part of factory automation, as is anything that lies on the critical path between the design engineer and the shipping department.

Why do CNC post-processors exist?

Post-processors exist because CAM systems and CNC machines do not naturally speak the same language.

In the early days of computer-aided manufacturing, CAM systems generated manufacturing instructions in neutral or intermediate formats.

These instructions described the toolpath and machining operation, but they were not usually ready to run directly on a specific machine tool.

At the other end of the process, NC and CNC machines needed instructions written for their own controllers, axis structures, machine functions, and formatting requirements.

The post-processor became the bridge between these two worlds.

Its role was to read the CAM system’s manufacturing instructions and translate them into the specific code required by the target machine. That basic job is still essential today.

Industry standards helped define common programming practices, but they never removed the need for post-processing. Real-world machines, controllers, and production environments still vary too much.

One CNC machine may handle rotary motion differently from another. One controller may require a different syntax for cycles, macros, or offsets. One shop floor may need a specific program structure, naming convention, or safety behavior.

That is why post-processors became - and remain - absolutely critical.

They turn generalized CAM output into machine-specific instructions that reflect the very CNC machine, controller, and manufacturing process being used.

How does a CNC post-processor work?

A CNC post-processor reads toolpath data from the CAM system and outputs machine-specific code. Here’s what a typical CNC programming workflow looks like.

CAD model

The part is designed.

CAM programming

Toolpaths are created to machine the part.

Post-processing

The CNC post-processor converts CAM output into machine-ready G-code.

Simulation and verification

The NC program is checked before production.

CNC machine

The verified program is sent to the machine tool.

The post-processor crucially sits between CAM programming and CNC execution. It is the step at which programming intent becomes machine-specific instructions.

What does a CNC post-processor do?

A CNC post-processor converts CAM data into machine-ready output, but its role can extend beyond basic translation.

Depending on the machine and software environment, a post-processor can help:

• Format G-code for the CNC controller.

• Manage tool changes, spindle commands and coolant commands.

• Support machine kinematics and rotary axis motion.

• Output controller-specific cycles, macros and functions.

• Reduce manual NC code editing.

• Improve programming consistency.

• Support safer machine prove-outs.

• Connect with CNC simulation software and G-code verification.


This is why post-processing quality can have a major impact on productivity, safety, and confidence at the machine.

Is a post-processor the same as CAM software?

No, CAM software and post-processors do very different jobs.

CAM software creates machining strategies and toolpaths. The post-processor converts those toolpaths into machine-ready G-code.

A simple way to think about it is: CAM software decides how the part should be machined. The CNC post-processor decides how that machining strategy should be expressed for a specific machine and controller.

Is a post-processor the same as G-code?

Not exactly. G-code is the output. Meanwhile, the post-processor is the software that creates the output.

A G-code post-processor reads CAM toolpath data and generates CNC machine code for the machine controller.

The quality of the G-code depends heavily on the post-processor.

Why generic CNC post-processors can create issues.

Many CAM systems include standard or generic post-processors. These may work for basic applications, but they do not always reflect the exact machine, controller or production requirements of a specific shop floor.

Generic CNC post processors can create problems, such as:

• Manual G-code editing.

• Unsupported controller functions.

• Inefficient machine motion.

• Longer prove-outs.

• Poor use of machine capability.

• Inconsistent output between programmers.

• Risk during multi-axis machining.

• More shop-floor troubleshooting.


This is especially true for advanced CNC environments, including 5-axis machines, mill-turn centers, robotics, Universal Holding Fixture systems, and special-purpose equipment.

What is Icam Post’s role in CNC post-processing?

Icam Post technology, now part of Vericut, has long supported CNC post-processing, custom post-processor development, machine simulation, and optimization.

Icam Post’s CAM-POST technology supports custom CNC post-processors for a wide range of CAM systems, CNC machines, and controllers.

Within the Vericut ecosystem, Icam Post helps manufacturers connect post-processing with simulation, verification and optimization, supporting a stronger path from CAM programming to machine-ready production.

CNC post-processors: key takeaways

A CNC post-processor turns your CAM output into machine-ready G-code.

It sits at the intersection between CAM programming and CNC execution, translating toolpaths into code that reflects the specific nuances and behaviors of your CNC machine and controller.

A good post-processor can radically reduce manual editing, improve programming consistency, support advanced machine functions, boost machinist confidence, and help create safer, more reliable NC programs across your shop floor.

When connected with CNC simulation software like Vericut, G-code verification and optimization, post-processing becomes more than a translation step. It becomes a critical part of a smarter, safer and more efficient digital manufacturing workflow.

Need a custom CNC post processor?

If your current post-processor requires manual edits, does not fully support your CNC machine, or creates uncertainty during prove-out, Icam Post can help.

Talk to Vericut about your CAM system, CNC machine, controller, and manufacturing requirements today.
